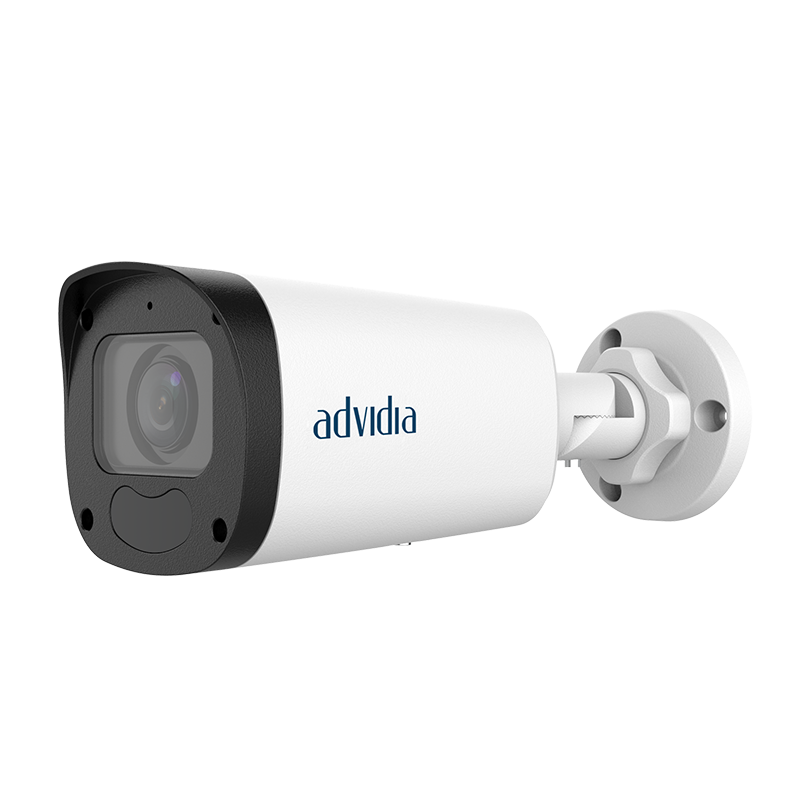

2MP Bullet Network Camera.
- Image sensor: 1/2.7 inch Progressive Scan CMOS
- Resolution: 2.0 Megapixel
- Lens: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
- Infrared viewing range: Up to 50 meters
- Support Day and Night (ICR) function
- Dust and water resistance standard: IP67 (suitable for indoor and outdoor use)
Description
Specifications:
Device
COMPONENT SPECIFICATION
Image Sensor 1 / 2.8″ Progressive Scan CMOS
Min Illumination Color: 0.01Lux (F2.0, AGC ON) | 0Lux with IR
Shutter Time Auto/Manual, 1 ~ 1/100000s
Lens 2.8mm@F2.0
WDR 52 dB
Angle of View H: 106.7°, V: 57.1°, O: 115.7°
Angle Adjustment Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360°
3-Axis Adjustment: Yes
Day & Night IR-Cut Filter with Auto Switch (ICR)
IR Range Up to 30m (98ft) IR range
Compression Standard
COMPONENT SPECIFICATION
Video Compression H.265, H.264
Video Bit Rate 128 Kbps ~ 6 Mbps
Two Stream Yes
Analytics Motion Detection
COMPONENT SPECIFICATION
Max. Image Resolution 1920 x 1080
Frame Rate 30fps (1920 x 1080)
ROI Codec Up to 8 areas
Image Setting White Balance, Digital Noise Reduction, Smart IR, Flip, HLC, BLC
Network
COMPONENT SPECIFICATION
Protocols IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, UPnP, HTTP
Interface
COMPONENT SPECIFICATION
Communication Interface 10M/100M Base-TX Ethernet
General
COMPONENT SPECIFICATION
Safety CE, IEC62368-1
EMC FCC Part 15, EN 55032:2015+A11:2020, EN 55035: 2017+A11:2020
Operating Conditions
Temperature: -30°C~60°C(-22°F~140°F),
Humidity:≤95%RH(Non-Condensing)
Power Consumption Max 5.0 W
Power Supply DC 12V±25%, PoE (IEEE 802.3af)
Weather Proof Rating IP67
Dimensions Φ111 x 95mm (Φ4.4” x 3.8”)
Net Weight 0.29kg (0.64lb)
Software No license required for use with Video Insight Software
