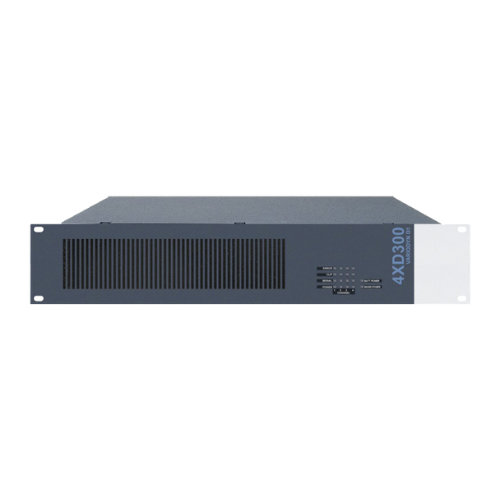

Honeywell 4XD300
Contact
Variodyn D1 Class-D Power Amplifier | 4 x 300W | >94 dB Channel Separation
The 4XD300 is controlled and monitored by the DOM4-8 or DOM4-24 (Digital Output Module) of the Variodyn D1 module. It comes with a cooling unit socket located on its rear panel for connecting the mains and the mains fuse. Its 24 V emergency power supply is connected to a 2-pole socket provided for this purpose.
• 4-channel power amplifier, Class D, 100 V output
• Available in two models: 4 x 300 W / 4 x 500 W
• Efficiency greater than 80%
• 24 V DC emergency power supply
• Controlled and monitored by DOM
• Integrated electronic protection against thermal overload and short circuit on the output
• Complies with EN 54-16
Part No. 580248
Description
Specifications:
Type 4XD300
Nominal output power (sin.) 4 x 300 W
Power consumption (230V AC) 9.7 A
Power consumption (24V DC / music / 1/3 load) 25.9 A
Power consumption (24 V DC / speech / 1/8 load) 12.5 A
Channel separation > 94 dB
Power consumption in standby mode (230 V mains) 0.5 A
Rated voltage 230 V AC
Rated frequency 50 to 60 Hz, +10% / -5%
Operating principle Class D
Transmission frequency band (-1 dB) 20 Hz to. 20 kHz
Distortion factor at max. load / 1kHz < 0.03 %
Input impedance >20 kΩ , el. symmetrical
Ambient temperature during operation -5 °C to +55 °C
Rel. humidity 40 % to 93 %, (w/o condensation)
Housing color gray, similar to RAL 7016
Weight: ca. 14 kg
Dimensions 4XD250 (W x H x D) 483 x 88 x 454 mm / 2 HU, 19”
