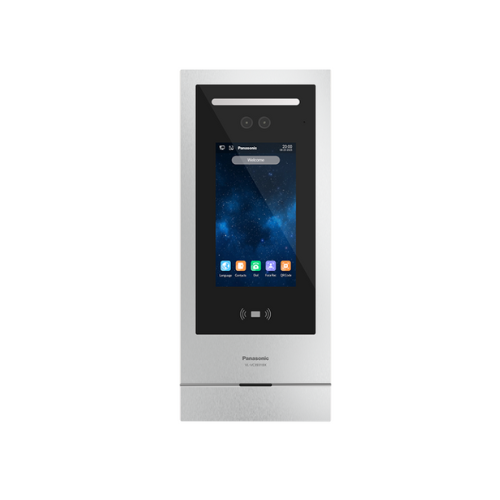

Panasonic VL-VC3931BX
Contact
IP Video Intercom System – Lobby Station.
Basic Information
Size: Approx. 378mm x 162mm x 35.5mm
Color: Silver
External material: AL + ABS + Tempered glass
Operation: Capacitive touch screen
Installation: Surface mounted
Features
- 7 inch color display with capacitive touch screen
- Video intercom: Built-in 2M pixel camera + IR camera (for face recognition) with microphone
- E-lock unlock function:
– Support unlock by password
– Support remote unlock from Mobile App or Intercom
– Support unlock by face recognition
– Support unlock by Mifare card
– Support unlock by QR code
– Temporary unlock by QR code and password: Can be generated from Mobile App for guests - Built-in Mifare card reader: The host can scan the resident card at the Lobby Station to open the door
- Face recognition by built-in color camera + IR camera
- Motion detection: The Lobby Station will light up when detecting available
- PBX: Call the Security Station
- Leave Message: Guest can leave a voice message
- Monitoring: Live video from the Lobby Station can be viewed on Room Monitor, Security Station and Mobile App
- Elevator Access Control: Call Elevator & Floor Access Control (with 3rd party elevator controller)
- Device Removal Alarm: When the device is removed, the alarm will sound and a warning will be sent
- Custom Screen: Screen Saver Image can be customized
- Ringtone Configuration: Ringtone can be set for outgoing calls
- Web Configuration: Engineer can set parameters on the web
- External Devices can be connected: Electric Lock, Door Status Sensor, Lock Button or Fire Alarm Button, IP Elevator Controller and Access Controller via Wiegand Output.
Description
Specifications:
System Parameters
Operation system Linux
Flash 8GB
RAM 1GB
Display Parameters
Size 7-inch wide color display
Operation Method Capacitive touch screen
Resolution 600 x 1024
Video Parameters
Video Compression H.264
Video Pixel VGA, 720P
Camera Pixel
2.0M pixels CMOS sensor
1/2.9-inch
3.5mm EFL
Minimum Illuminance Required 0.01lx (within approx. 50cm from the camera lens)
Camera Quantity 1 Color Camera + 1 IR Camera
HDR Supported
Viewing Angle 93.8°(H) / 50.4°(V)
Lighting Method White colored LED lights
Audio Parameters
Audio Compression G.711
Speaker 8Ω / 0.5W
Microphone -56 ± 2dB
Face Recognition
Face Capacity 20K
IC Card
Card Capacity 50K
Frequency 13.56MHz (ISO/IEC 14443 Type A (MIFARE))
Network Parameters
Wiring UTP (Cat 5e or higher)
Protocol IPv4; TCP/IP; ICMP; UDP; RTSP; HTTP; DNS; RTP; RTMP; ARP; NTP
Device Interfaces
Network Interface
RJ45, 10BASE-T/100BASE-TX
(Auto MDI/MDI-X)
Power Out Port —
RS485 Reserved
Relay Output 1
Fire Detect Port 1
Lock Release 1
Door Status Port 1
Wiegand Output Port 1
General
Power Source POE Splitter or Power supply unit (Sold separately)
Operating Voltage 12 to 27VDC
Current Rating DC 12V, 625mA; DC 27V, 310mA
Power Consumption Standby: 3.5W, Operating: 7.5W
Installation Method Surface mount
Color Silver
Dimensions (H x W x D) (Excluding protruding sections) Approx. 378mm x 162mm x 35.5mm
Operating Temperature -30°C to +60°C
Storage Temperature -40°C to +70°C
Operating Humidity Up to 90% (non-condensing)
IP rating (Ingress Protection) IP65
IK rating (Impact Protection) IK07
Talking Method Hands-free
Display Language English, Chinese, Vietnamese, Indonesian and Thai
Motion Detect Supported
External Material AL + ABS + Tempered glass
Weight
Without package: 1750g
With package: 3490g
