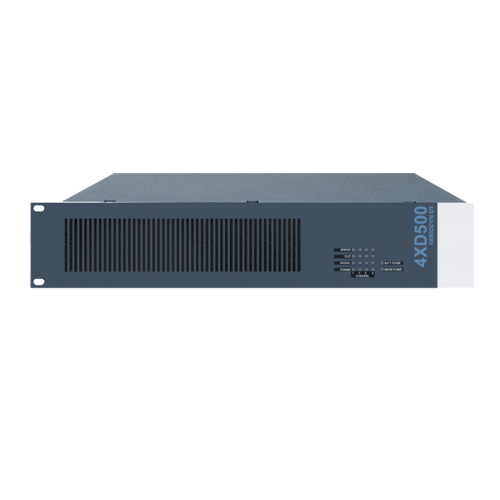

Bộ khuếch đại công suất PAVA Honeywell 4XD500

Description

Thông số kỹ thuật:

Type 4XD500

Nominal output power (sin.) 4 x 500 W

Power consumption (230V AC) 15.0 A

Power consumption (24V DC / music / 1/3 load) 40.1 A

Power consumption (24 V DC / speech / 1/8 load) 17.6 A

Channel separation > 92 dB

Power consumption in standby mode (230 V mains) 0.5 A

Rated voltage 230 V AC

Rated frequency 50 to 60 Hz, +10% / -5%

Operating principle Class D

Transmission frequency band (-1 dB) 20 Hz to. 20 kHz

Distortion factor at max. load / 1kHz < 0.03 %

Input impedance >20 kΩ , el. symmetrical

Ambient temperature during operation -5 °C to +55 °C

Rel. humidity 40 % to 93 %, (w/o condensation)

Housing color gray, similar to RAL 7016

Weight: ca. 14 kg

Dimensions 4XD250 (W x H x D) 483 x 88 x 454 mm / 2 HU, 19”
