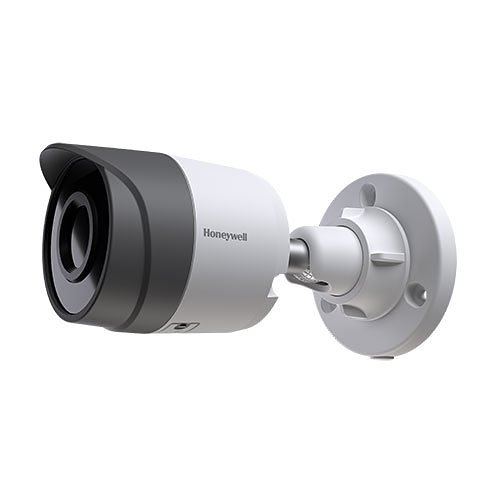

Camera giám sát Honeywell HC30WB2R1

Description

Thông số kỹ thuật:

OPERATIONAL

Video Standard NTSC/PAL

Scanning System Progressive

Image Sensor 1/2.9” Progressive CMOS

Number Of Pixels (H × V) 1920(H) x 1080(V)

Minimum Illumination 0.065 lux color @ F2.0, 0 lux B/W with IR LEDs on @ F2.0

S/N Ratio > 55 dB

Electronic Shutter Speed 1/5 ~ 1/32,000

IR Distance Distance up to 50m(165ft)

IR Light Control Smart IR (Auto/Manual)/OFF

IR Light Number 2

Day/Night Auto/Day/Night/Schedule

Backlight Compensation WDR, HLC

White Balance Auto/Fixed Current/Manual

Gain Control 0-100%

Wide Dynamic Range 120dB

Noise Reduction 3D DNR

Privacy Masking Off / On (5 Areas)

Motion Detection Motion/Intrusion/People detection

Tampering Detection Tampering Detection/Image too dark detection/Image too bright detection/ Image too blurry detection

Region Of Interest Support

Lens 4.0mm, Fixed, F2.0

Angle Of View H:81°, V:44°

VIDEO

Video Compression H.265/H.264/Smart Codec/MJPEG

Resolution 1920×1080/1600×904/1360×768/1280×720/640×360

Frame Rate
Main Stream: 1080P (1 ~ 25/30fps);
Sub Stream: 720P (1 ~ 25/30fps);
Third Stream: 640×360(1 ~ 25/30fps);

Bit Rate Control Constrained bit rate/Fixed quality

Bit Rate 20K ~ 40Mbps

NETWORK

Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Chrome 71+, Internet Explorer 11.0+

Supported OS Microsoft Windows 7/10

Protocols*
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability ONVIF Profile G/S

Maximum Users Access 10 Users

Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/ Telnet closed, PCIDSS compliance

Event
Event notification using HTTP, SMTP, NAS server and MicroSD card
File upload via HTTP, SMTP, NAS server and MicroSD card

Micro SD Micro SD/SDHC/SDXC card slot (256GB)

ELECTRICAL

Power Supply DC12V, PoE (IEEE 802.3af) (Class 2)

Power Consumption MAX 6.49W

MECHANICAL

Dimensions ø91.1mm x 177mm (ø3.59” x 6.97’’)

Product Weight 0.53kg

Package Weight 0.74kg

Material Die-casting aluminum housing with coating

Construction Color RAL 120-1 (Lyric White)

ENVIRONMENTAL

Operating Temperature
Starting: -10°C ~ 60°C (14°F ~ 140°F)
Working: -30°C ~ 60°C (-22°F ~ 140°F)

Relative Humidity Less than 90%, non-condensing

Ingress Protection IP66

REGULATORY

Emissions FCC PART 15B, EN 55032, EN61000-6-3

Immunity EN 50130-4

Safety UL 62368-1, EN 62368-1

ROHS EN 50581
