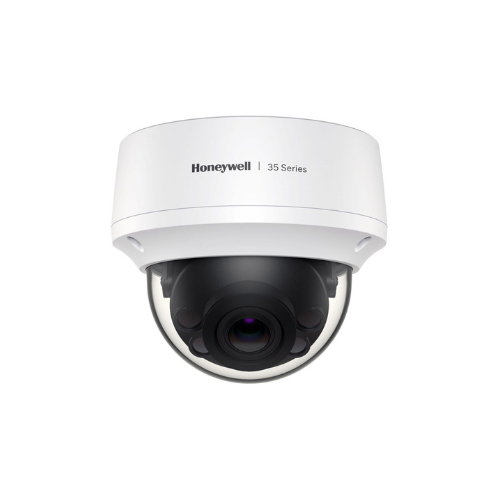

Camera giám sát Honeywell HC35W45R2
Liên hệ
5MP IP WDR IR Rugged Mini Dome Camera.
- Cảm biến hình ảnh: 1/2.7-inch Progressive CMOS
- Độ phân giải: 5.0 Megapixel
- Ống kính: 2.8-12mm MFZ, F1.4-2.8mm
- Tốc độ khung hình: Lên đến 30fps
- Độ nhạy sáng tối thiểu: 0.035 lux (colour)/0 lux (B/W) @ F1.4 (with IR LEDs on)
- Hỗ trợ khe cắm thẻ nhớ Micro SD, Micro SDHC, Micro SDXC up to 256GB
- Tầm quan sát hồng ngoại: 30 mét
- Chuẩn nén hình ảnh: H.265/H.264/Smart Codec/MJPEG.
- Tiêu chuẩn chống bụi và nước: IP66 (camera quan sát thích hợp sử dụng trong nhà và ngoài trời)
- Tiêu chuẩn chống va đập: IK10
- Hỗ trợ chức năng cấp nguồn qua mạng PoE
- Nguồn điện: 12 VDC
Description
Thông số kỹ thuật:
OPERATIONAL
Video Standard NTSC / PAL
Scanning System Progressive
Image Sensor 1/2.8” CMOS
Sensor Size (H x V) 5.184 mm x 3.888 mm
Number Of Pixels (H x V) 2592 x 1944
Minimum Illumination (Color/BW) 0.005 Lux / F1.6 (Color, 30 IRE), 0 Lux / F1.6 (IR ON)
S/N Ratio 50 dB
Electronic Shutter Speed 1/8 ~ 1/32,000
IR Distance up to 50 m
IR Light Control Smart IR ( Auto / Manual ) / OFF
IR Light Number 4
Day/Night Auto (ICR) / Color / BW
Backlight Compensation WDR, BLC, HLC
White Balance Auto/Tungsten/ Fluorescent/ Daylight/Shadow/Manual
Gain Control 0-100%
Wide Dynamic Range 120 dB
Noise Reduction 2D / 3D DNR
Lens 2.7-13.5 mm, DC-Iris,F1.6-F3.3, MFZ
Angle Of View H:96°-26°, V:69°-20°
Privacy Masking Off / On (4 Areas)
Defog Supported
Local Storage Micro SD (up to 256 GB)
Alarm Inputs/Outputs
Pan Range 0°-355°
Tilt Range 0°-75°
Rotation Range 0°-354°
VIDEO
Video Compression H.265 HEVC/H.264/MJPEG, Smart Codec
Resolution
1st: 2592 x 1944 / 2592 x 1520 / 1920 x 1080 /
1280 x 720
2nd: 704 x 576 (PAL) / 704 x 480 (NTSC) /
640 x 480 / 352 x 288 (PAL) / 352 x 240 (NTSC)
3rd: 1920 x 1080 (MAX 12 fps) / 640 x 480 / 352 x
288 (PAL) / 352 x 240 (NTSC) / 320 x 240
Number of Video Streams 3 (2 for encryption)
Frame Rate* MAX 30 fps
Bit Rate* 100K~12 Mbps
AUDIO
Audio Compression G.711A / G.711U
Audio Stream 2-Way, Full duplex
Audio Interface Line In/Out
NETWORK
Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)
Supported Web Browsers Chrome / Edge
Supported OS Microsoft Windows 10
Protocols**
IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast,
SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
Interoperability ONVIF Profile G/S/T
Maximum Users Access 10 Users
Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed,
PCI-DSS compliance
Languages Supported Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish
EVENTS / ANALYTICS
Built-in Video Analytics People Counter, Multi Loitering, Intrusion, Tampering, Smart Motion Detection (SMD), Motion Detection
Event Type Video motion detection, Alarm input, Recording notification, Tampering
Event Linkage Event notification using digital output, Email and MicroSD card
Region Of Interest 8
ELECTRICAL
Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)
Power Consumption (Max) MAX 6 W
MECHANICAL
Dimensions Ø130.0 mm × 112.3 mm (Ø5.12” × 4.42”)
Dome Diameter Ø96.0 mm (3.78”)
Product Weight 0.86 kg (1.90 lb)
Package Weight 1.05 kg (2.31 lb)
Body Material Die-cast aluminium housing
Color
Camera Body: RAL 9003 (Signal White)
Front/Lens Facings: Pantone Black
ENVIRONMENTAL
Operating Temperature
Starting Temperature:
-40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F)
Relative Humidity Less than 90 %, non-condensing
Ingress Protection IP66/IP67
Impact Resistance IK10
REGULATORY
Emissions FCC PART 15, CE (EN 55032), Complies with RCM and UKCA
Immunity CE(EN 50130-4), Complies with RCM and UKCA
Safety UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with
RCM and UKCA
RoHs CE(EN 63000), UAE(Cabinet Decree No.10 of 2017)
