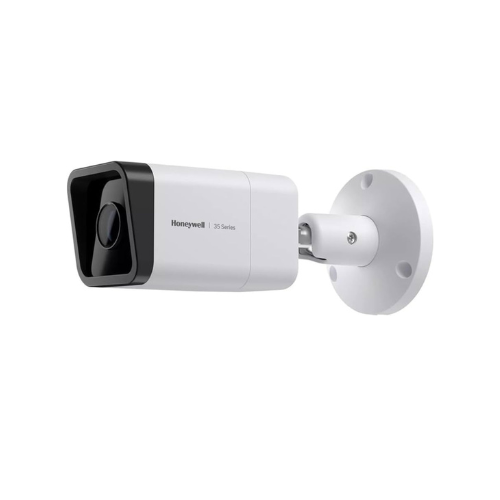

Camera giám sát Honeywell HC35WB5R3

Description

Thông số kỹ thuật:

OPERATIONAL

Video Standard NTSC / PAL

Scanning System Progressive

Image Sensor 1/2.8” CMOS

Sensor Size (H x V) 5.184 mm x 3.888 mm

Number Of Pixels(H x V) 2592 x 1944

Minimum Illumination (Color/BW) 0.007 Lux/F2.0 (Color,30 IRE), 0 Lux/F2.0 (IR ON)

S/N Ratio 50 dB

Electronic Shutter Speed 1/8 ~ 1/32,000

IR Distance up to 50 m

IR Light Control Smart IR (Auto/Manual)/OFF

IR Light Number 4

Day/Night Auto (ICR) / Color / BW

Backlight Compensation WDR,BLC,HLC

White Balance Auto/Tungsten/Fluorescent/Daylight/Shadow/Manual

Gain Control 0-100%

Wide Dynamic Range 120 dB

Noise Reduction 2D/3D DNR

Lens 2.8mm, Fixed Iris, F2.0

Angle Of View H:88°, V:65°

Privacy Masking Off / On (4 Areas)

Defog Supported

Local Storage Micro SD (up to 256 GB)

Alarm Inputs/Outputs 1 In / 1 Out

EVENTS / ANALYTICS

Built-in Video Analytics People Counter, Multi Loitering, Intrusion, Tampering, Smart Motion Detection (SMD), Motion Detection

Event Type Video motion detection, Alarm input, Recording notification, Tampering

Event Linkage Event notification using digital output, Email and MicroSD card

Region Of Interest 8

ELECTRICAL

Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)

Power Consumption (Max) MAX 6W

VIDEO

Video Compression H.265 HEVC/H.264/MJPEG, Smart Codec

Resolution
1st: 2592 x 1944 / 2592 x 1520 /
1920 x 1080 / 1280 x 720
2nd: 704 x 576(PAL) / 704 x 480(NTSC) /
640 x 480 / 352 x 288(PAL) / 352 x 240(NTSC)
3rd: 1920 x 1080 (MAX 12 fps) / 640 x 480 /
352 x 288(PAL) / 352 x 240(NTSC) / 320 x 240

Number of Video Streams 3 (2 for encryption)

Frame Rate* MAX 30 fps

Bit Rate* 100K~12 Mbps

AUDIO

Audio Compression G.711A/G.711U

Audio Stream 2-Way, Full duplex

Audio Interface Line In/Out

NETWORK

Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Chrome/Edge

Supported OS Microsoft Windows 10

Protocols**
IPv4, IPv6, TCP / IP, HTTP, HTTPS, RTSP / RTP / RTCP, IGMP / Multicast,
SMTP, DHCP, NTP, DNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability ONVIF Profile G/S/T

Maximum Users Access 10 Users

Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet
closed, PCI-DSS compliance

Languages Supported
Arabic, Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish

EVENTS / ANALYTICS

Built-in Video Analytics People Counter, Multi Loitering, Intrusion, Tampering, Smart Motion Detection (SMD), Motion Detection

Event Type Video motion detection, Alarm input, Recording notification, Tampering

Event Linkage Event notification using digital output, Email and MicroSD card

Region Of Interest 8

ELECTRICAL

Power Supply DC12V, PoE (IEEE 802.3af) (Class 0)

Power Consumption (Max) MAX 6W

MECHANICAL

Dimensions Ø87.0 mm × 197.3 mm (Ø3.43” × 7.77”)

Product Weight 0.7 kg (1.54 lb)

Package Weight 0.85 kg (1.87 lb)

Body Material Die-cast aluminium housing

Color
Camera Body: RAL 9003 (Signal White)
Front/Lens Facings: Pantone Black

ENVIRONMENTAL

Operating Temperature
Starting Temperature:
-40°C ~ 60°C (-40°F ~ 140°F)
Working Temperature:
-40°C ~ 60°C (-40°F ~ 140°F)

Relative Humidity Less than 90 %, non-condensing

Ingress Protection IP66/IP67

Bullet Casing IK10

REGULATORY

Emissions FCC PART 15, CE (EN 55032), Complies with RCM and UKCA

Immunity CE(EN 50130-4), Complies with RCM and UKCA

Safety UL LISTED TO UL/CSA 62368-1, CE(EN 62368-1), Complies with RCM and UKCA

RoHs CE(EN 63000),UAE(Cabinet Decree No.10 of 2017)
