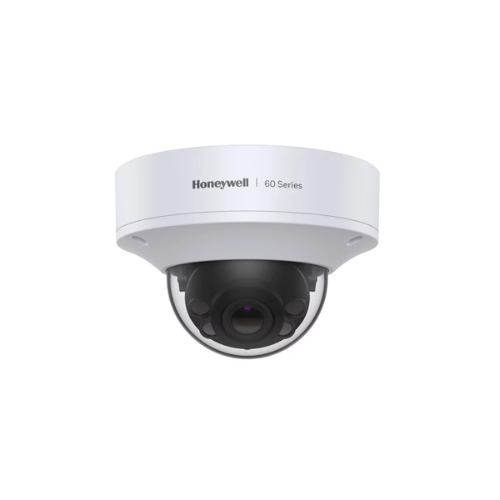

Camera giám sát Honeywell HC60W42R2I

Description

Thông số kỹ thuật:

OPERATIONAL

RAM 1 GB

Flash 512 MB

Video Standard NTSC/PAL

Scanning System Progressive

Image Sensor 1/2.8” CMOS

Sensor Size (H x V) 5.216 x 3.928 mm

Number of Pixels (H x V) 2 MP (1920 x 1080)

Minimum Illumination (Color/BW) 0.002 Lux@F1.6

S/N Ratio > 55 dB

Electronic Shutter Speed 1/3 ~ 1/100,000

IR Distance Up to 50 m

IR Light Control Smart IR (Auto/Manual)/OFF

IR Light Number 4

Removable IR-Cut Filter Yes

Day/Night Auto/Day/Night/Timing

Backlight Compensation WDR, HLC, BLC

White Balance Auto/Tungsten/Fluorescent/Daylight/Shadow

Gain Control 0 ~ 100 %

Wide Dynamic Range 140 dB

Noise Reduction 3D DNR

Lens 2.7 ~ 13.5 mm, MFZ, DC-Iris, F1.4 ~ F2.8

Digital Image Stabilization Yes

Angle of View (H x V) H: 94° ~ 30° V: 52° ~ 17°

Privacy Masking Off/On (4 Areas)

Defog Yes

Encryption Chipset Hardware embedded

Local Storage Micro SD/SDHC/SDXC card slot (1TB)

Alarm Inputs/Outputs 2 in/1 out

Reset Supported

VIDEO

Video Compression H.265/H.264/MJPEG, Smart codec

Resolution (16/9) 2592 x 1520/1920 x 1080/1280 x 720

Resolution (4/3) 640 x 480/320 x 240

Number of Video Streams 3

Frame Rate
Main Stream: 1920 x 1080 50/60fps, 1280 x 720
25/30fps
Second Stream: 1920 x 1080/704 x 576(PAL)/704 x 480(NTSC)/640 x 480/352 x 288(PAL)/352 x 240(NTSC) 25/30fps
Third Stream: 640 x 480/352 x 288 (PAL)/352 x 240 (NTSC)/320 x 240 25/30fps

Bit Rate 100 K ~ 12 Mbps

Analog Output Support CVBS

PTZ

Pan Range 0° ~ 352° (-176° ~ 176°)

Tilt Range 0° ~ 75°

Rotation Range 0° ~ 354° (-163° ~ 191°)

AUDIO

Audio Compression G.711 a/G.711 Mu

Audio Stream Full duplex

Audio Interface Line in/out

NETWORK

Ethernet 10 Base-T/100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Microsoft Edge, Chrome

Supported OS Microsoft Windows 10, Windows 11

Protocols*
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, DHCP, NTP, DNS, DDNS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability ONVIF Profile G/S/T/M

Maximum Users Access 10 Users

Security
Software: Firmware encrypted&Signed, SD card encryption, User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128/256, SSH/Telnet closed, PCIDSS compliance & attestation
Hardware: Secure boot, Secure authentication chipset
built-in

Languages Supported
Arabic, Chinese (Traditional), Czech, Dutch, English, French, German, Italian, Japanese, Korean, Polish, Portuguese (Brazil), Russian, Spanish, Turkish

EVENTS/ANALYTICS

Video Analytics
Standard: Motion detection, Scene change
AI Based: Smart motion, Intrusion, Multi loitering, People counter, Face detection, Line crossing detection, Unattended object detection, Missing object detection

Event Type Analytics alarm, Security alarm, Disk alarm, Recording alarm, Audio detection

Event Linkage Email, Push notification, SD card recording, Digital output

Region of Interest 8

Event Event notification using digital output SMTP, FTP, MicroSD card

ELECTRICAL

Power Supply AC24V, DC12V, PoE (IEEE 802.3af)(Class 0)

Power Consumption (Max) 7.56 W

* Some development may be required in specific user cases to support some of these protocols in the field as they mature over time.

MECHANICAL

Dimensions Ø159.0 mm x 109.8 mm (6.26” x 4.32”)

Dome Diameter Ø96.40mm (3.80”)

Product Weight 1.10 kg (2.43 Ib)

Package Weight 1.50 kg (3.31 Ib)

Body Material Metal (die casting aluminum with powder coating)

Color White (RAL9003)

ENVIRONMENTAL

Operating Temperature
Starting Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
Working Temperature: -40 °C ~ 60 °C (-40 °F ~ 140 °F)
(IR off)

Relative Humidity Less than 90 %, Non-condensing

Ingress Protection IP66, IP67

Impact Resistance IK10

REGULATORY

Emissions FCC PART 15, CE (EN 55032), ICES-003, Complies with RCM and UKCA

Immunity CE (EN 50130-4, EN 55035), Complies with RCM and UKCA

Safety UL listed to UL/CSA 62368-1, CE (EN 62368-1) Complies with RCM and UKCA

RoHS CE (EN 63000), UAE (Cabinet Decree No.10 of 2017)
