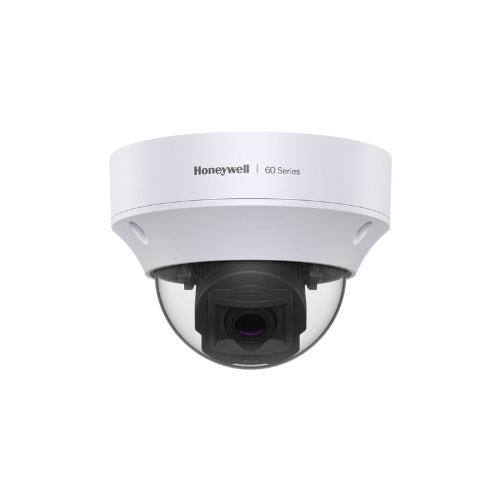

Camera giám sát Honeywell HC60W45R2

Description

Thông số kỹ thuật:

OPERATIONAL

Video Standard NTSC / PAL

Scanning System Progressive

Image Sensor (Size : H × V) 1/2.8” CMOS (5.18 x 3.89 mm)

Number Of Pixels (H × V) 5MP (2560 x 1920)

Min. illumination (Color/B&W) 0.04 Lux / 0Lux (@F1.4 IR on)

S/N Ratio 60 dB

Electronic Shutter Speed 1/32000 ~ 1/30

IR Distance Up to 50 m (165 ft)

IR Light Control Smart IR (Auto / Manual) / OFF, External IR trigger by output

IR Light Number 4

Removable IR-Cut Filter Yes

Day/Night Auto / Day / Night / Synchronize with digital input / Schedule

Backlight Compensation WDR, HLC

White Balance Auto / Fixed Current / Manual

Gain Control 0-100 %

Wide Dynamic Range 120 dB

Noise Reduction 3D DNR

Lens (Remote focus)
2.7 ~ 13.5 mm, MFZ, P-IRIS,
F 1.4 ~ F 2.8

Angle Of View H: 100° ~ 30°, V: 72° ~ 23

G-Sensor Support Camera Direction OSD Display (Default – Off)

Privacy Masking Off / On (5 Areas)

Defog Support

Encryption Chipset Built-in FIPS encryption Chipset

Local Storage Micro SD / SDHC / SDXC card slot (up to 256 GB), SD Card encryption

Micro USB Support Wifi Dongle for configuration

Alarm Inputs / Outputs 2 In / 1 Relay Out

VIDEO

Video Compression H.265 HEVC / H.264 / MJPEG, Smart Codec

Resolution (16/9)
2560 x 1440 / 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360

Resolution (4/3) 2560 x 1920 / 1600 x 1200 / 1280 x 960 / 640 x 480

Number of Video Streams 3

Frame Rate Main Stream & Frame Rate Second Stream
2560 x 1440 / 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-25/30 fps), 1920 x 1080 / 1600 x 904 / 1360 x 768 / 1280 x 720 / 640 x 360 (1-50/60 fps), 2560 x 1440 (1-50 fps)

Frame Rate Third Stream
1280 x 960 / 640 x 480 (1-25/30 fps)
1280 x 720 / 640 x 360 (1-50/60 fps)

Bit Rate (Control) 20 K ~ 80 Mbps

AUDIO

Audio Compression G.711a / G.711 Mu / G.726

Audio Stream Full duplex, simplex

Audio Interface Line In / Out

NETWORK

Ethernet 10 Base-T / 100 Base-TX Ethernet (RJ-45)

Supported Web Browsers Chrome 79.0 Internet Explorer 11

Supported OS Microsoft Windows 10

Protocols*
IPv4, IPv6, TCP / IP, HTTP, HTTPS, UPnP, RTSP/RTP / RTCP,
IGMP / Multicast, CIFS / SMB, SMTP, DHCP, NTP, DNS, DDNS, CoS,
QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS

Interoperability ONVIF Profile G / S

Maximum Users Access 10 Users

Security
User account and password protection, HTTPS, IP Filter, Digest authentication, TLS1.2 only, Stream encryption, AES128 / 256, SSH / Telnet closed, PCIDSS compliance, FIPS Chipset Built-In

Languages Supported
English, French, German, Italian, Japanese, Portuguese, Russian, Spanish, Traditional Chinese

EVENTS / ANALYTICS

Built-in Video Analytics Intrusion, Loiter, Line crossing, Unattended object, Missing object, Face
detection

Event type Video motion detection, Periodically, Alarm input, System boot, Recording notification, Camera tampering detection

Event linkage Event notification using digital output, HTTP, Email and MicroSD card

Region Of Interest 5

ELECTRICAL

Power Supply
12 VDC / 24 VAC (50 / 60 Hz), Heat On: PoE (IEEE 802.3 at,
Class 4), Heat Off: PoE (IEEE 802.3 at, Class 3), Auto Sensing

Power Consumption MAX 25.5 W

MECHANICAL

Dimensions (Ø x H) Ø 159.0 mm x 118.3 mm (Ø 6.3’’ x 4.7’’)

Dome diameter 107.4 mm (4.2’’)

Product Weight 1.08 kg (2.38 lb)

Package Weight 2.14 kg (4.72 lb)

Body Material Metal (die casting aluminum with powder coating )

ENVIRONMENTAL

Operating Temperature Starting & Working: -40°C ~ 60°C (802.3at PoE Class 4)

Relative Humidity Less than 90 %, non-condensing

Ingress Protection IP 66 / IP 67 / NEMA 4X

Impact Resistance IK 10

Heater Two (SOC/Lens)

Gore-Vent Yes

Fan Yes

REGULATORY

Emissions FCC PART 15, CE (EN 55032)

Immunity CE (EN 50130-4)

Safety
UL LISTED TO UL / CSA 62368-1, CE (EN 62368-1), UL / CSA 60950-22, CE (EN 60950-22)

RoHS
CE (EN 50581), EAC (TR EAEU 037 / 2016),
UAE (Cabinet Decree No.10 of 2017)
